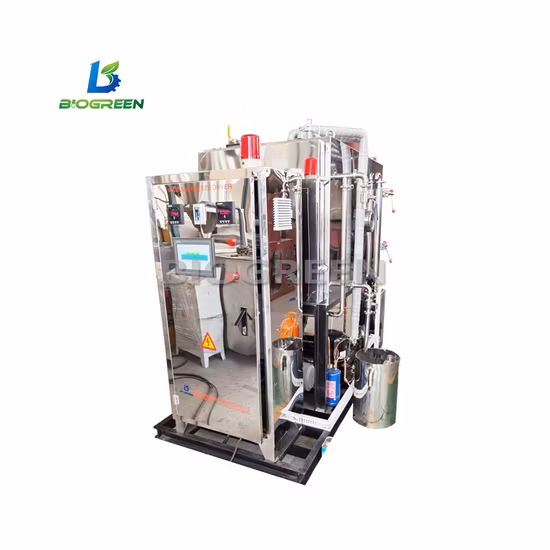

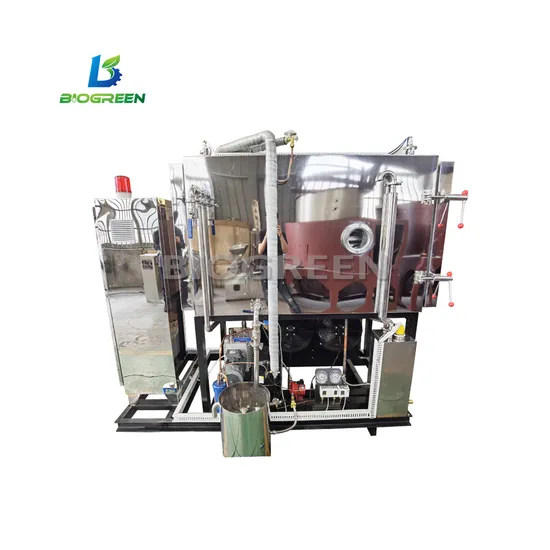

Biobase Big Capacity Industrial Food Fruit Vacuum Pilot Freeze Dryer

Basic Info

Model NO.	BK-FD20S
After-sales Service	Onsite/ Online
Warranty	1 Year
Type	Freeze Drying Equipment
Application	Solution
Operating Pressure	Vacuum
Condition	New
Product Name	Freeze Dryer
Freeze Drying Area	0.3m2
Shelf Temperature	-50c-+70c(No-Loading)
Cold Trap Temperature	<75c(No-Loading)
Vacuum Degree	Less Than 5 PA(No-Loading)
Water Capture Capacity	More Than 6
Cold Trap Volume	14L
Cold Trap Size (Diameter*H)	Dia200*460mm
Drying Chamber Size (WDH)	330325470mm
Shelf & Tray Size (WDH)	Shelf:40027018mm Tray:39526525mm
Qty. of Shelf & Tray	Shelf:3+1 Tray:3
Sample Loading Capacity (Liquid)	3L
Height Between Trays	70mm
Refrigerant	R404A + R23
Condenser Cooling Mode	Air Cooling
Transport Package	Wooden Case
Trademark	BIOBASE
Origin	China
Production Capacity	300unit/Month

Product Description

Biobase vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.

Features:

1. Pre-freezing, drying in-situ, easy to operate, good drying effect.

2. Inflatable (discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

4. 7-inch true color touch screen.

5. Can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

6. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

7. Flexible manual + automatic control mode, manual mode used for groping process, automatical mode used for batch production.

8. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

9. User level and password can be set and decentralized for operation management.

Model			BK-FD20T (Stoppering)	BK-FD30S (Standard)	BK-FD30T (Stoppering)
Freeze Drying Area		0.3m2	0.2m2	0.4 m2	0.3m2
Shelf Temperature		-50ºC~+70ºC(no-loading)
Cold Trap Temperature		<75ºC(no-loading)
Vacuum Degree		≤5 Pa(no-loading)
Water Capture Capacity		≥6		≥8
Cold Trap Volume		14L		/		26L
Cold Trap Size (Diameter*H)		Φ200*460mm		/		Φ320*520mm
Drying Chamber Size (WDH)		330325470mm		340500420mm		480380540mm
Shelf & Tray Size (WDH)		Shelf:40027018mm Tray:39526525mm		30034018mm 29533525mm
Qty. Of Shelf & Tray		Shelf:3+1	Shelf:2+1	Shelf:4+1	Shelf: 3+1
		Tray:3	Tray:2	Tray:4	Tray: 3
Sample Loading Capacity (Liquid)		3L	2L	4L	3L
Height Between Trays		70mm		50mm	70mm
Tray Temperature Difference		±1ºC
Refrigerant		R404A + R23
Condenser Cooling Mode		Air cooling
Defrost Mode		Electric defrosting	Electric defrosting	Natural defrosting(option electric defrosting)	Electric defrosting
Stoppering Mode		/	manual	/	automatic
Total Qty. Of Vial	Φ22mm	/	440	/	654
	Φ16mm	/	868	/	1200
	Φ12mm	/	1554	/	2187
Vacuum Pump		4L/S(14.4m3/h)	4L/S(14.4m3/h)	6L/S(22m3/h)	6L/S(22m3/h)
Electric Defrosting Consumption		800W	800W	/	1000W
Silicone Oil Heating Rods Consumption		800W	800W	1000W	1000W
Hydraulic Pressure Station Consumption		/	500W	/	1000W
Total Consumption		3KW	3KW	4.5KW	5.5KW
Power Supply		AC220V, 50Hz/60Hz (single phase)
Main Body Weight		300kg	300kg	400kg	400kg
External Size (WDH)		8407501580mm	8407501580mm	9207801350mm	12608501420mm
Packing Size (WDH) And Gross Weight	Main Body	9808601720 mm/400kg	9808601720 mm /470kg	11009801570mm/450kg	144010701720mm/651kg
	Vacuum Pump	950420500mm (37kg)		790340460mm (57kg)			790300470mm (52kg)
