Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer

Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer

IntroductionIndustrial Automatic Microwave Vacuum Freeze low temperature vacuum dryer Dryer Oven is a new type of drying
SHARE

Description

Basic Info
Power Source Electric
Automatic Grade Automatic
Condition New
Capacity 200-400kg/H
Voltage 380V, 50Hz, 3phases (Adjustable)
Control System PLC
Delivery Detail 25 Working Days After Receiving Deposit
Power 40kw
Machine Material Food Grade Stainless Steel
Transport Package Inside Plastic Bag, Outside Wooden Case
Specification 7200*1300*1800mm
Trademark HIMAX
Origin Shandong China
HS Code 8438800000
Production Capacity 200sets/Month
Product Description
IntroductionIndustrial Automatic Microwave Vacuum Freeze low temperature vacuum dryer Dryer Oven is a new type of drying equipment with high production efficiency and low operating cost. It is also an efficient and environmental friendly energy-saving equipment; especially for foods that contain bactericidal and fresh-keeping functions while drying. This equipment has been widely involved in the pharmaceutical, food, chemical, building materials and other industries.HIMAX series tunnel microwave dryer is a multi-tube tunnel microwave machine consisting of microwave heater, microwave generator, microwave suppressor, mechanical transmission mechanism, exhausting and dehumidifying system and automatic control system. The main components of the equipment are all Made of 304# stainless steel, it conforms to the GMP standard of pharmaceutical equipment. The whole machine adopts modular design, easy to clean and easy to operate.Big Capacity Industrial Spice Microwave Dryer Dehydration Tunnel Seasoning Microwave Oven

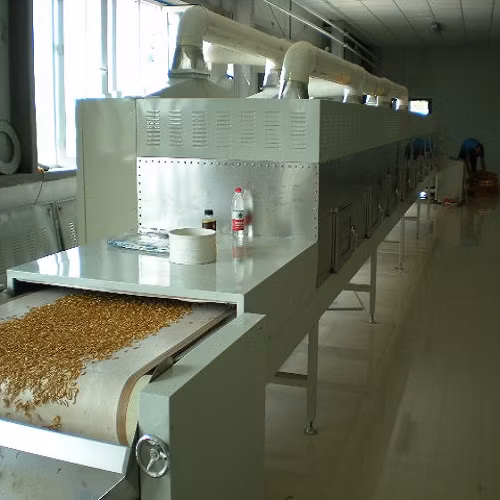

Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer


How it works?When the equipment running, the microwave is first generated by the microwave generator, and the feeding device is input into the microwave heater; the material is sent to the microwave heating chamber by the transmission system, and the moisture in the material is heated and evaporated under the action of the microwave energy, and the water vapor passes. The dehumidification system is eliminated to achieve the purpose of drying. The bacteria in the material are killed by the biological and thermal effects produced by the microwave electromagnetic field. Since the microwave acts directly on the material, the drying temperature is low and the speed is fast, and the loss of the active ingredient in the material is small.

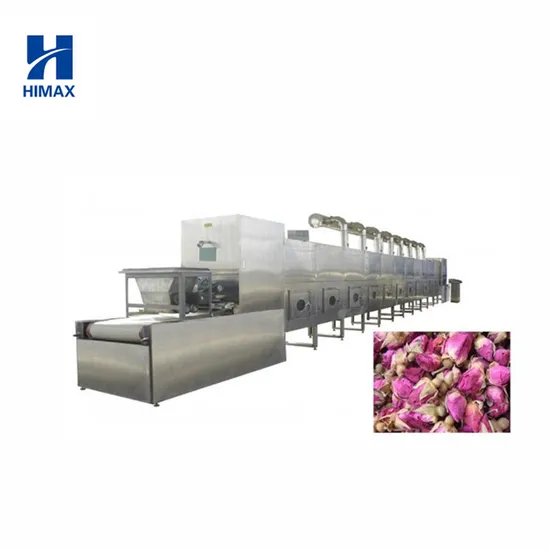

Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer

Application1.chemical material,medicine tablet or pill,such as watered pills,honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc2.all kinds of teas,herbs, flowers, green leaves,etc.3.various dried meat, like beef, pork, chicken,duck, fish etc.4.powder for various material,such as spices, other food additives.5.agricultural products,such as china date,nuts,grains,peanut,etc6.snack food, fruit seeds, grains, peanuts, chips,etc.Below are some examples of use:

Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer


Technical Parameter

Model

HM-20HMV

HM-30HMV

HM-40HMV

HM-60HMV-8X

HM-120HMV-12X

HM-200HMV-18X

Rated Input Apparent Power

≤20kw

≤30 kw

≤40 kw

≤60 kw

≤120 kw

≤200 kw

Microwave Output Power

≥20 kw

≥30 kw

≥40 kw

≥50 kw

≥110 kw

≥180 kw

Work Process Temperature

70~200ºC( Controllable)

Equipment Cooling Method

Water cooling /Air cooling

Inlet And Outlet Height

40~100mm

40~100mm

40~100mm

40~100mm

40~100mm

40~60mm

Transmission Belt Height

600~1000mm

Dehydration Rate

16-20kg/hr

24-30kg/hr

32-35kg/hr

40~50kg/hr

80~100kg/hr

140~170kg/hr

Dimensions

(L*W*H)

8640 *1200 *2200(mm)

11000 *1200 *2200(mm)

11000 *1500 *2200(mm)

12500*1600*2200

(mm)

16500*1800*2200

(mm)

24500*1800*2200

(mm)

Features1.Easily control The whole machine adopts modular design,and controlled by PLC system, easy operation.2.Short processing time Because the microwave has the penetrating property to heat the inside and outside of the material at the same time, no heat transfer medium, so the heating speed is very fast. Typically it will dry materials in one-tenth the time of the standard dryers.3.Improve final product quality and extend its shelf-life Microwave has the effect of disinfection and sterilization to keep product safety and extend its shelf-life.4.Energy savings The aqueous material easily absorbs microwaves and generates heat, so there is almost no heat loss in the heating process ensure the heating efficiency and energy saving.5.Uniform heating The hot air in regular food dehydrators dries foods from the outside. This causes the surface to harden, making it difficult for the water inside to get out and lengthening the drying process. In contrast, the microwave drying machine uses microwaves that reach inside the food, causing the water in it to evaporate. The water vapor is carried away in air currents. This technique results in uniform drying and allows the process to be completed more quickly.6.Control temperature accurately The equipment is equipped with the imported infrared thermometer to control temperature accurately, automatically achieve the microwave power adjustment of various materials to meet the microwave energy reach the material inside. The temperature fluctuation range is ≤ 3 °C.7.Environmental friendly Microwave drying equipment do not produce "three wastes", because microwave energy is controlled in the heating chamber. There are no radioactive hazards and harmful gas emissions, no residual heat and dust pollution,environmental friendly.
Packing And Delivery
Packaging SpecificationOutside Pachage:Wooden Packing as Exportand Standard.
Delivery time20-25days after received 40% of the whole payment.
Shipping forwardingWe can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China

Company Information
Jinan Himax Machinery is a professional supplier of food processing machines for 12Years. We have many kinds of machines and production line, such as food extrusion machine, soya meat production line, industrial microwave oven, packaging machine, pet food production importantly, we also provide formulas, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service ,delivery and installation. Based on the clients specific requirement, we also OEM machines for our clients. Processing LineCustomer Visit
Certificates

Industrial Automatic Microwave Vacuum Freeze Low Temperature Vacuum Dryer


Our Srevices

-- Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.

--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
